CENTRIFUGAL
BLOWERS

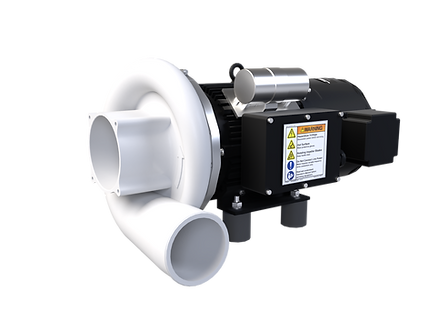

Efficient, Effective Air with the Jet Series High Speed Centrifugal Blowers
Jet Series blowers are ideal for air knife drying, vacuum, cooling, & exhaust applications. They are enabled by a high-speed motor and an aerodynamically designed impeller.
This full line of centrifugal blower options features belt-free DirectDrive™ technology. DirectDrive™ enhances reliability and boosts performance by eliminating belts, tensioning devices, and complex spindle assemblies. Jet Series blowers are engineered for moderate flow and pressure applications from 10HP to 40HP [7.5-30kW]. Their compact design enables them to fit into the widest range of OEM equipment.
JET-1
JET-2X
JET-1
Max Flow: 954 CFM [27 m³/min]
Max Pressure: 72 "H20 [18000 Pa]
Motor Rating: 10HP [7.5kW]
Voltage: 200-220/380-480 VAC
Phase: Three Phase
Weight: 67 lbs [30 kg]
JET-2X
Max Flow: 1029 CFM [29 m³/min]
Max Pressure: 105 "H20 [26000 Pa]
Motor Rating: 20HP [15kW]
Voltage: 200-220/380-480 VAC
Phase: Three Phase
Weight: 115 lbs [52 kg]
JET-3
JET-3
Max Flow: 1060 CFM [30 m³/min]
Max Pressure: 80 "H20 [20000 Pa]
Motor Rating: 20HP [15kW]
Voltage: 200-220/380-480 VAC
Phase: Three Phase
Weight: 112 lbs [51 kg]
JET-5
JET-5
Max Flow: 1978 CFM [56 m³/min]
Max Pressure: 105 "H20 [26000 Pa]
Motor Rating: 40HP [15kW]
Voltage: 200-220/380-480 VAC
Phase: Three Phase
Weight: 180 lbs [82kg]
